3D Printers

How to Use the 3D Printers

Demo

There are several steps when creating a finished 3D printed product at the makerspace: 1. Create or find a 3D model – Design in Fusion 360, SolidWorks, TinkerCAD, or FreeCAD, or download from Thingiverse, MakerWorld, Printables, or MyMiniFactory. 2. Slice your model – Convert .stl, .3mf, or .obj into .gcode using Bambu Studio, PrusaSlicer, Cura, or Chitubox. 3. Send to printer – Transfer G-code via SD card, USB, or network (for Bambu printers). 4. Monitor the print – Ensure first-layer adhesion and proper extrusion or resin exposure. 5. Post-process – Remove supports, clean the area, and finish your model. 6. Weigh and Pay – $0.05/g for FDM, $0.10/g for SLA prints using makerspace materials.

FDM / Extrusion Printers

Fused Deposition Modeling (FDM) — also known as Fused Filament Fabrication (FFF) — is the most common form of 3D printing.
These machines melt thermoplastic filament and deposit it layer by layer to form a solid object.
At the makerspace, we use FDM printers for durable parts, enclosures, and mechanical prototypes.
All FDM prints using makerspace filament are priced at $0.05 per gram.

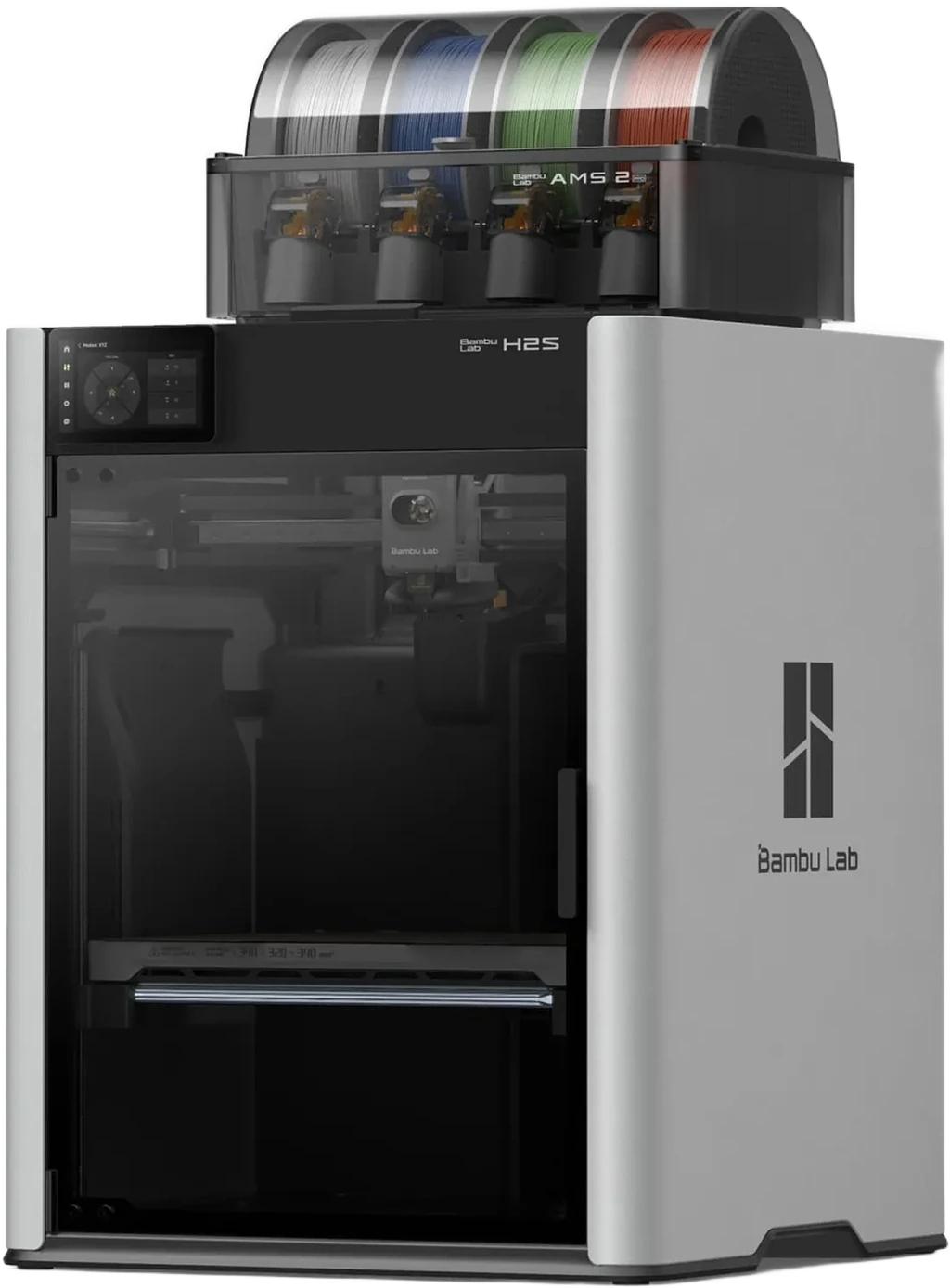

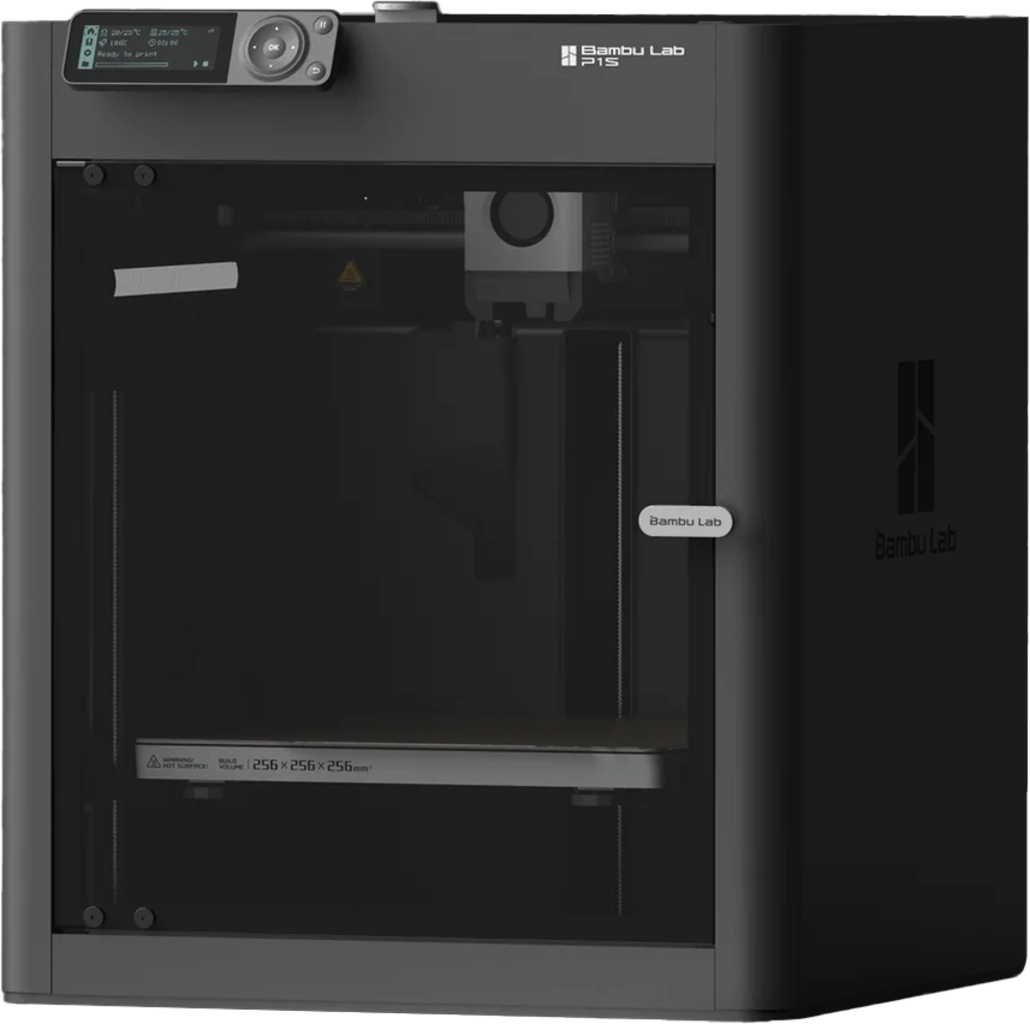

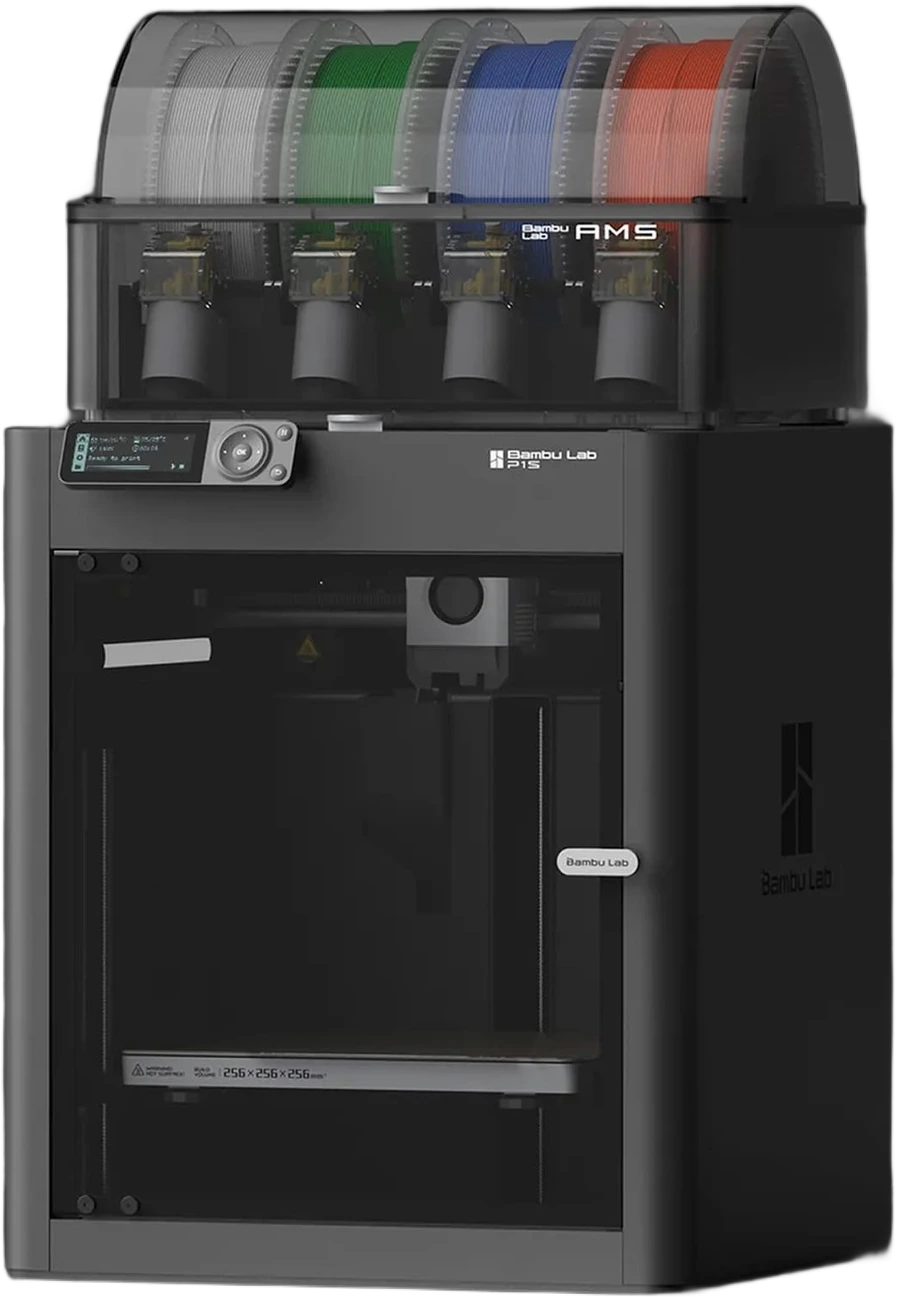

Printer	Bambu P1S (Left — No AMS)	Bambu P1S (Right — AMS 2 Pro)	Bambu H2S (AMS 2 Pro)
Print Volume	256 × 256 × 256 mm	256 × 256 × 256 mm	340 × 320 × 340 mm
Heated Bed	Yes	Yes	Yes (up to 120°C)
Filament Diameter	1.75 mm	1.75 mm	1.75 mm
Nozzle Diameter	0.4 mm (swappable)	0.4 mm (swappable)	0.4 mm standard (swappable)
Layer Height Range	0.08 – 0.28 mm	0.08 – 0.28 mm	Depends on installed nozzle and slicer profile
Supported Materials	PLA, PETG, ABS, ASA, TPU, PA	PLA, PETG, ABS, ASA, TPU, PA	PLA, PETG, ABS, ASA, TPU, PC, PA and other supported engineering filaments
Auto Bed Leveling	Yes	Yes	Yes
Multi-Material Support	No AMS installed; single-spool feeding	4-spool AMS 2 Pro	4-spool AMS 2 Pro
Connectivity	Wi-Fi / LAN / MicroSD	Wi-Fi / LAN / MicroSD	Wi-Fi / USB
Software	Bambu Studio / OrcaSlicer	Bambu Studio / OrcaSlicer	Bambu Studio
Status	🟢 Fully Operational	🟢 Fully Operational	🟢 Fully Operational
Notes	Enclosed CoreXY printer; no automatic filament switching	Enclosed CoreXY printer with AMS 2 Pro for multi-color jobs	Larger build volume; single nozzle; actively heated chamber up to 65°C
Documentation	Bambu P1S	Bambu P1S	Bambu H2S Specifications

SLA / Resin Printers

Stereolithography (SLA) and Masked SLA (MSLA) printers use UV light to cure liquid resin one layer at a time,
producing parts with extremely fine detail and smooth surfaces.
At the makerspace, SLA printing is ideal for miniatures, molds, and detailed prototypes.
SLA prints using makerspace resin are priced at $0.10 per gram.

Resin Printer/SLA usage, cleaning, and workflow

👉 Resin 3D Printers Guide

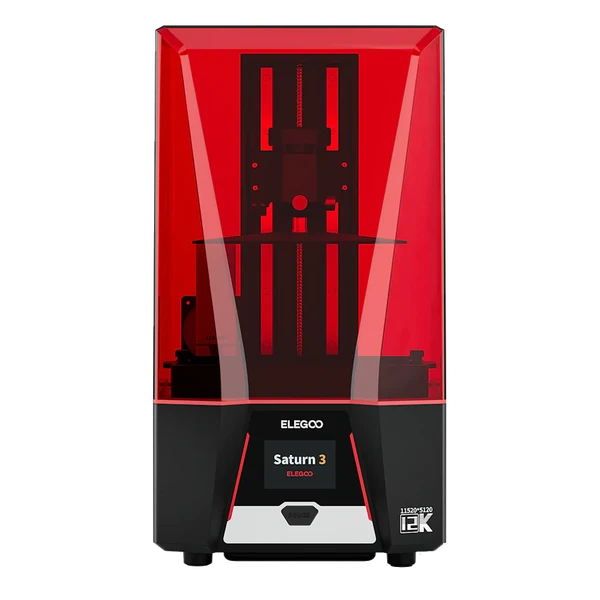

Printer	Elegoo Saturn 3 (Unit 1)	Elegoo Saturn 3 (Unit 2)	Prusa SL1S SPEED
Print Volume	218.88 × 122.88 × 250 mm	218.88 × 122.88 × 250 mm	127 × 80 × 150 mm
Display	10″ mono 12K LCD (11520 × 5120)	10″ mono 12K LCD (11520 × 5120)	5.96″ mono LCD (2560×1620)
Layer Height Range	0.01 – 0.2 mm	0.01 – 0.2 mm	0.025 – 0.1 mm
Technology	MSLA (Masked Stereolithography)	MSLA (Masked Stereolithography)	MSLA (Masked Stereolithography)
Materials Supported	UV-sensitive resins	UV-sensitive resins	UV-sensitive resins
Curing Wavelength	405 nm	405 nm	405 nm
Software	Chitubox / Voxeldance Tango	Chitubox / Voxeldance Tango	PrusaSlicer (SLA mode)
Connectivity	USB	USB	LAN / USB
Status	🟢 Fully Operational	🟢 Fully Operational	🟢 Fully Operational
Notes	One of two Saturn 3 printers; detailed medium-to-large resin prints	One of two Saturn 3 printers; detailed medium-to-large resin prints	High precision, fast exposure times
Documentation	Elegoo Saturn 3	Elegoo Saturn 3	SL1S SPEED

Friendly Printer Usage

• Share the printers: During high-usage hours, please use one printer at a time so everyone gets access.
• Be mindful of queue length: For long jobs (>8 hrs), consider off-peak times or split into smaller parts.
• Filament storage: Return open spools to sealed dry boxes after use.
• Vacuum-sealed spools: Store vacuum-sealed filament on the rack above the FDM printers. Do not open unless needed.
• Resin handling: Cap bottles, clean drips immediately, and keep resin in approved containers only.
• Weigh & pay fairly: Weigh all completed prints, including supports and failed prints, and pay:
  • FDM: $0.05/g (makerspace filament)
  • SLA: $0.10/g (makerspace resin)
• Cleanup is part of the job: Vacuum the floor around the printers, wipe the tables, and leave the area free of debris or resin spills.
• Log issues: If a printer misbehaves (clogs, layer shift, adhesion problems), note it on the printer log and send a message using Report a Problem

Tool Masters

Retired Printers

Printer	Image	Print Volume	Supported Materials	Heated Bed	Status	Notes	Documentation
Elegoo Saturn 1		192 × 120 × 200 mm	UV-sensitive resins (405 nm)	N/A	🔴 Retired	MSLA resin printer; 8.9″ mono 4K LCD.	Elegoo Saturn
Creality CR-10 V3		300 × 300 × 400 mm	PLA, PETG, ABS, TPU	Yes	🔴 Retired	Large-format FDM printer.	CR-10 V3
Creality Ender 6		250 × 250 × 400 mm	PLA, PETG, ABS	Yes	🔴 Retired	Enclosed cube FDM printer; previously listed as under repair.	Ender 6
DeltaMaker 2		240 × 260 mm	PLA only	No	🔴 Retired	PLA-only delta printers (3 units).	DeltaMaker Support
AnyCubic Predator		370 × 455 mm	PLA, PETG	Yes	🔴 Retired	Large-format delta printer, discontinued.	N/A
Ender-5 Plus		350 × 350 × 400 mm	PLA, PETG	Yes	🔴 Retired	Large Bowden printer replaced by Bambu units.	Ender-5 Plus
Makerbot Replicator 2		285 × 153 × 155 mm	PLA only	No	🔴 Retired	Legacy small build area printer.	Makerbot Manual
Monoprice Select Mini V2		120 × 120 × 120 mm	PLA	Yes	🔴 Retired	Compact beginner printer.	MP Select Mini Manual
RepRap Wilson TS (Super Jojo)		Custom	PLA, PETG, ABS	Yes	🔴 Dismantled	Community-built RepRap project.	RepRap Wiki
